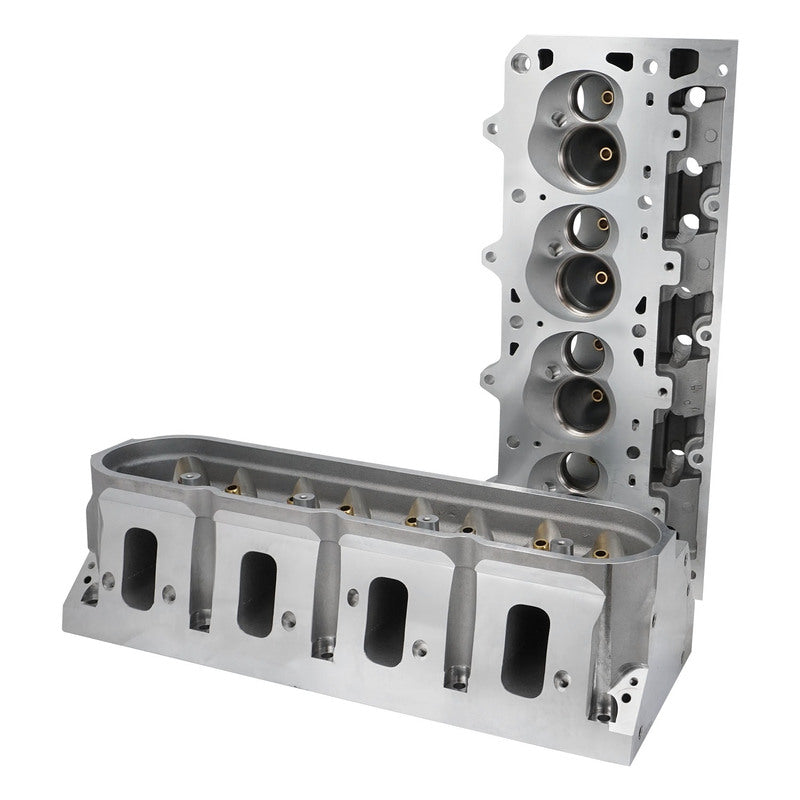

Proflow Cylinder Heads, LS3 SuperMax-B 260, Bare, Holden Commodore, Chev, Aluminium, 6-Bolt, LS3/L76/L77/L92/L98/LSX, 260cc Intake, 70cc Chamber, Pair
$1,925.00
LS3 SuperMax 260, Aluminium Cylinder Heads 15deg, Holden Chev, Bare
Proflow does not sacrifice quality for a low price- you get both with our aluminium cylinder heads. Our LS3 cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Cast from A356 aluminium, these 15° LS3 rectangle port heads are designed to fit LS series engines with a 4.00" or larger bore. These bare 275cc heads accept 2.165" diameter intake valves and 1.60" exhaust valves and have a 0.625" deck thickness. Suits 6-bolt standard or LSX block designs.
SPECIFICATIONS |
|
| Material | A356.2 Aluminum |
| Intake Port Volume | 260cc |
| Intake Port Location | Stock |
| Exhaust Port Volume | 92cc |
| Exhaust Port Location | Stock |
| Combustion Chamber | 70cc |
| Valve Angle | 15° |
| Minimum Bore Diameter | 4.000" |
| Maximum Valve Lift (in.) | 0.55 |
| Intake valve | 2. 165" 8mm |
| Exhaust valve | 1. 60" 8mm |
